Portable Endoscopy Unit
Gem Surgitech offers portable medical endoscopy units designed to provide high-quality visualization, bright illumination, and convenient operation for endoscopic procedures. The Endovision Unit combines an endoscopy camera, LED light source, display screen, and portable case design to provide an efficient solution for clinical examination and endoscopic imaging.
Key Features:
- Sony Image Sensor with HD Resolution
- Integrated Adjustable LED Light Source
- Offered in Two Screen Sizes
- Portable Lockable Case Design
- View or record on External Monitor / TV, Laptop, or Smartphone
- Supported Platforms: Windows, Android, Apple
Request a Quote
Prices vary based on selected configurations and accessories. Submit an enquiry to receive a detailed quotation from our sales team.
Engineered for the Modern Clinic
The Gem Surgitech Endovision Unit is a portable medical endoscopy system designed to provide clear and reliable visualization during endoscopic examinations and procedures. The system combines an Endoview Endoscopy Camera, high-performance LED light source, display screen, and a compact portable case for convenient clinical use. The endoscopy camera features a Sony image sensor, high-resolution imaging, and an anti-glare coated sensor for enhanced image capture. The LED light source provides bright illumination with adjustable brightness, while the portable case allows the complete system to be conveniently transported and stored. The procedure can also be viewed or recorded on an external monitor/TV, laptop, or smartphone, providing flexibility for clinical viewing and documentation.
Applications
- Medical Endoscopy
- Endoscopic Examination
- ENT Examination & Procedures
- Clinical Diagnostic Procedures
- Outpatient Clinical Use
- Procedure Viewing & Documentation
Model Variations
This product is available in the following specific configurations. You can request a quote directly for the model you are interested in.
Endovision Unit 13.5”
The Endovision Unit is designed for portability and convenient clinical use. It features a 13.5" HD LED screen, custom-designed lightweight and lockable case, Endoview Endoscopy Camera, and a 10W high-performance LED Penlight light source. With adjustable brightness, more than 100,000 lux illumination, and compatibility with Windows, Android, and Apple devices, the system provides a compact solution for endoscopic visualization and procedure documentation.

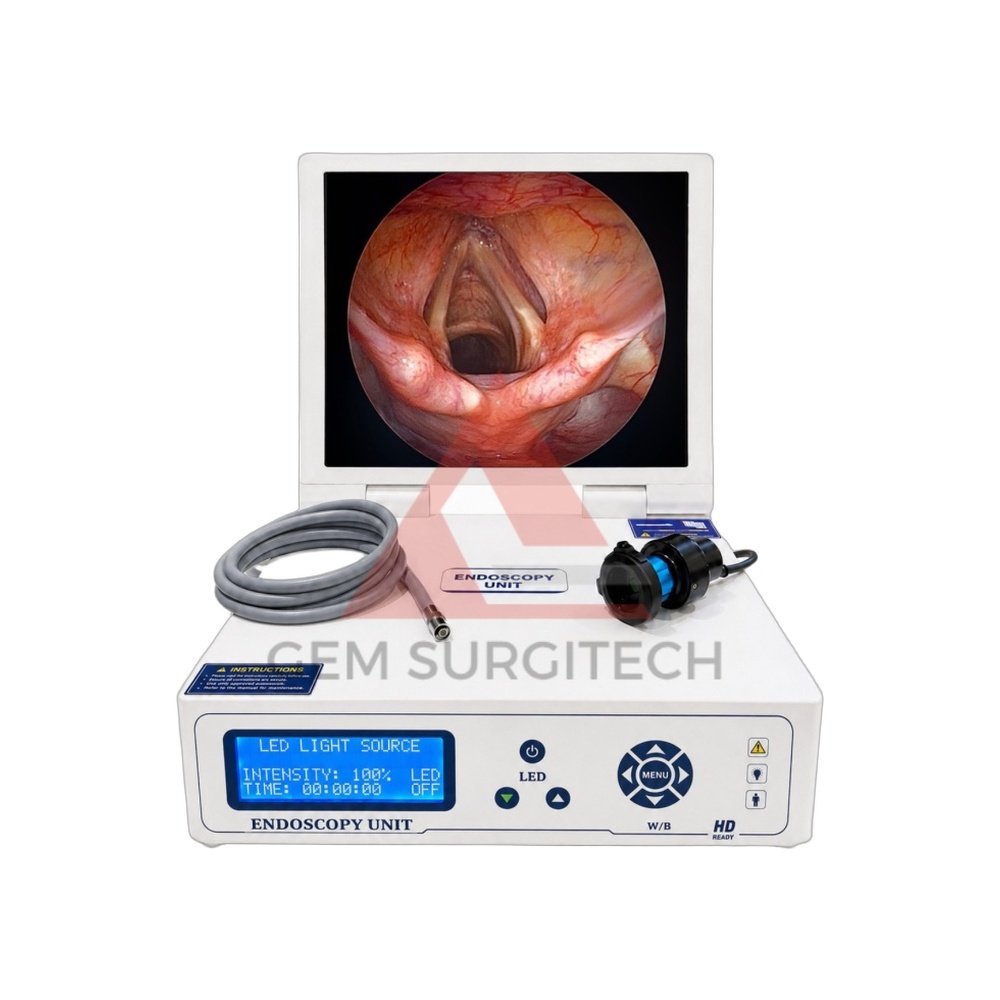

Endovision Unit 17"
The Endovision Unit 17" features a 17" HD OLED screen combined with a high-resolution Endoview Endoscopy Camera and a 120W digital LED Fibre Optic Light Source. Its solid, lightweight case design provides a practical solution for clinical environments requiring a larger integrated display. The unit provides adjustable brightness, more than 150,000 lux illumination, and supports procedure viewing or recording through external monitors, TVs, laptops, and smartphones.
| Feature / Specification | Endovision Unit 13.5” | Endovision Unit 17" |
|---|---|---|
| Sensor | Sony Image Sensor | Sony Image Sensor |
| Camera Resolution | 1280 × 720p (HD) | 1280 × 720p (HD) |
| Frame Rate | 60 fps | 60 fps |
| White Balance | ||
| Camera Cable Length | 2.3 metre | 2.3 metre |
| LED Power | 10W Direct LED | 120W |
| Brightness | Adjustable | Adjustable |
| LED Lux | >100,000 Lux | >150,000 Lux |
| Color Temperature | 6000K (White) | 6000K (White) |
| Screen Size | 13.5" | 17" |
| Screen Type | HD LED Panel | HD OLED Panel |
| Compliance | CE / ISO 13485 | CE / ISO 13485 |
| Package Contents | Main Unit, Camera Head, Light Source, Light Cable, Remote, AV Cable, Capture Card, Power Cord, Carry Bag | Main Unit, Camera Head, Fibre Optic Light Cable, Remote, AV Cable, Power Cord, Carry Bag |
| Power Consumption | 35W | 130W |
| Power Supply | AC 220V–240V, 50/60Hz | AC 220V–240V, 50/60Hz |
| Dimensions | 33 × 30 × 36 cm (W × D × H) (when opened) | 39 × 33 × 43 cm (W × D × H) (when opened) |
